Airone R3 Ductless Fume Cabinet
Ductless fume cabinets
Industrial fume cupboards
Higher education fume cupboards
Quick facts
- Designed to comply with BS EN 17242
- High-specification ductless fume cabinet
- No external ductwork required
- Variable Air Volume system for airflow control
- Low airflow alarm for safe operation
- Carbon / HEPA filter technology
- Bench-mounted, free-standing and walk-in options
- Polypropylene option available
Technical specification
Airone R3 Ductless Fume Cabinet for Industry & Higher Education
The Airone R3 is a high-specification ductless fume cabinet designed for industrial laboratories, universities, research facilities and higher education environments.
Using replaceable activated carbon and/or HEPA filters, the R3 provides a practical alternative to a ducted fume cupboard where external ductwork, make-up air systems or building works are difficult, costly or unnecessary.
Need a ductless fume cabinet for an industrial, university or research laboratory?
Best suited for
The Airone R3 is best suited for industrial, university and research laboratory environments that need a high-specification ductless fume cabinet without external ductwork.
It is particularly suitable for:
- Industrial laboratories
- University laboratories
- Higher education facilities
- Research laboratories
- R&D environments
- Laboratories where external ductwork is difficult or costly
- Applications requiring carbon and/or HEPA filter technology
- Projects where heated indoor air should not be expelled outside
- Applications requiring bench-mounted, free-standing or walk-in options
- Applications where a polypropylene fume cabinet option may be required
Product overview

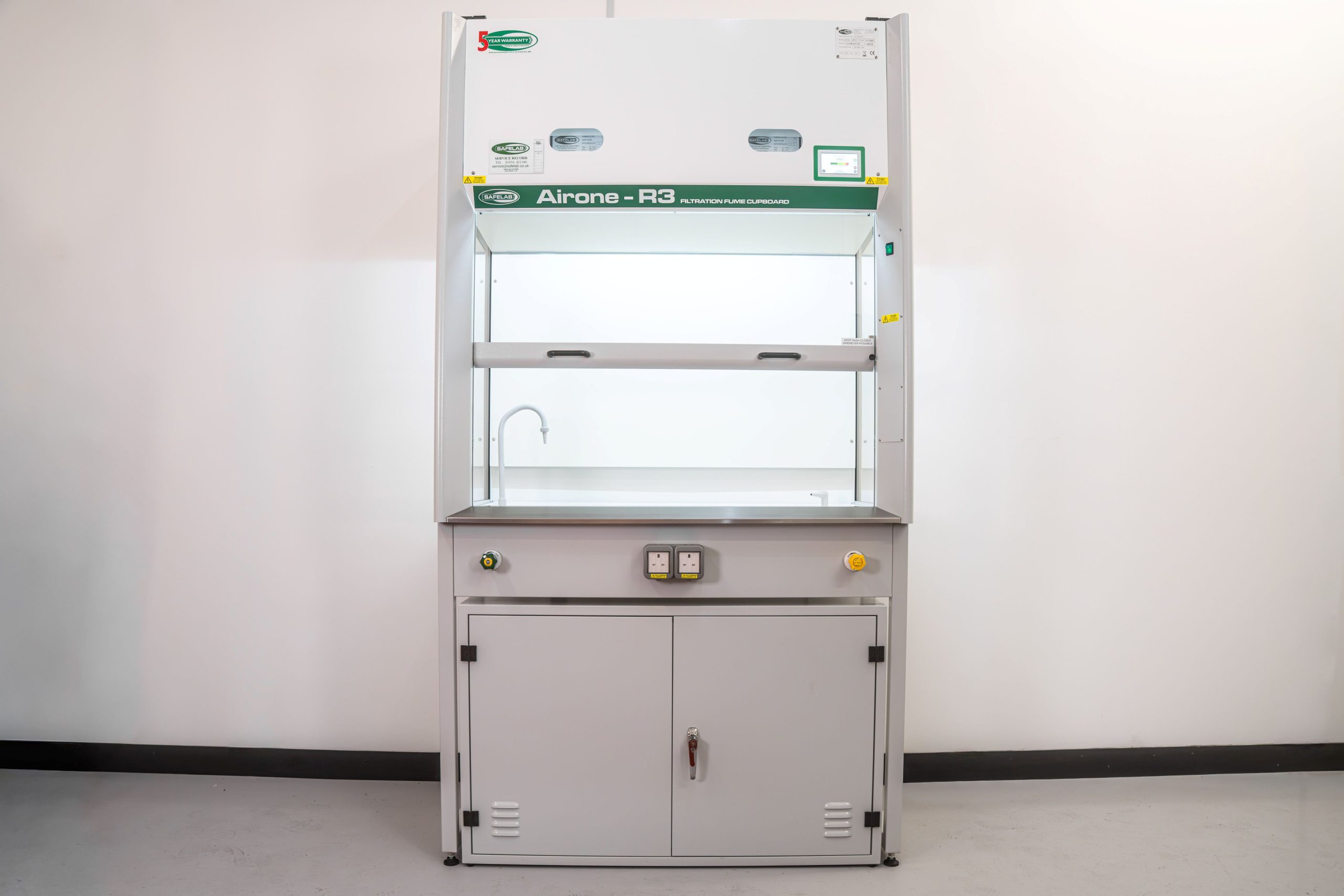

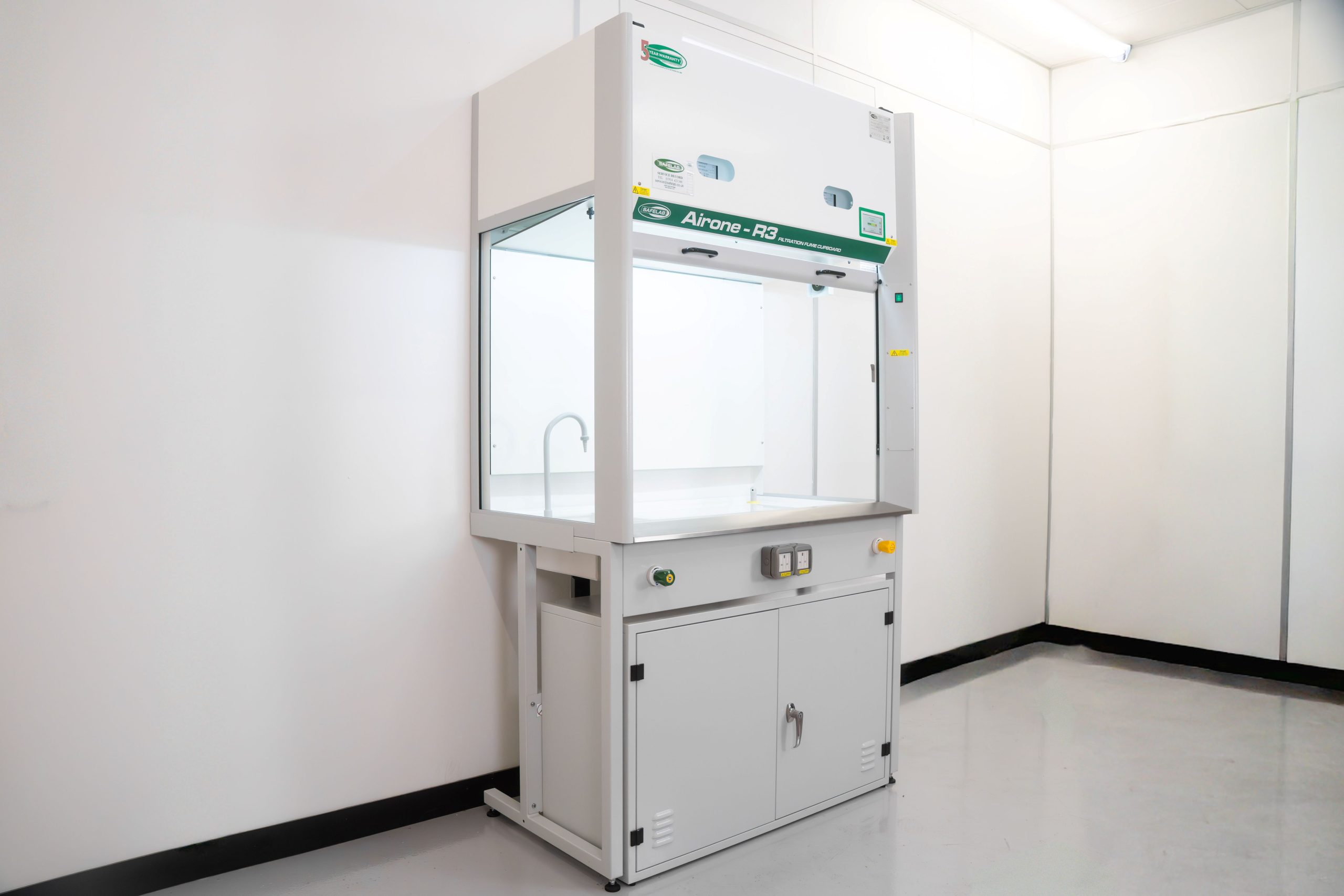

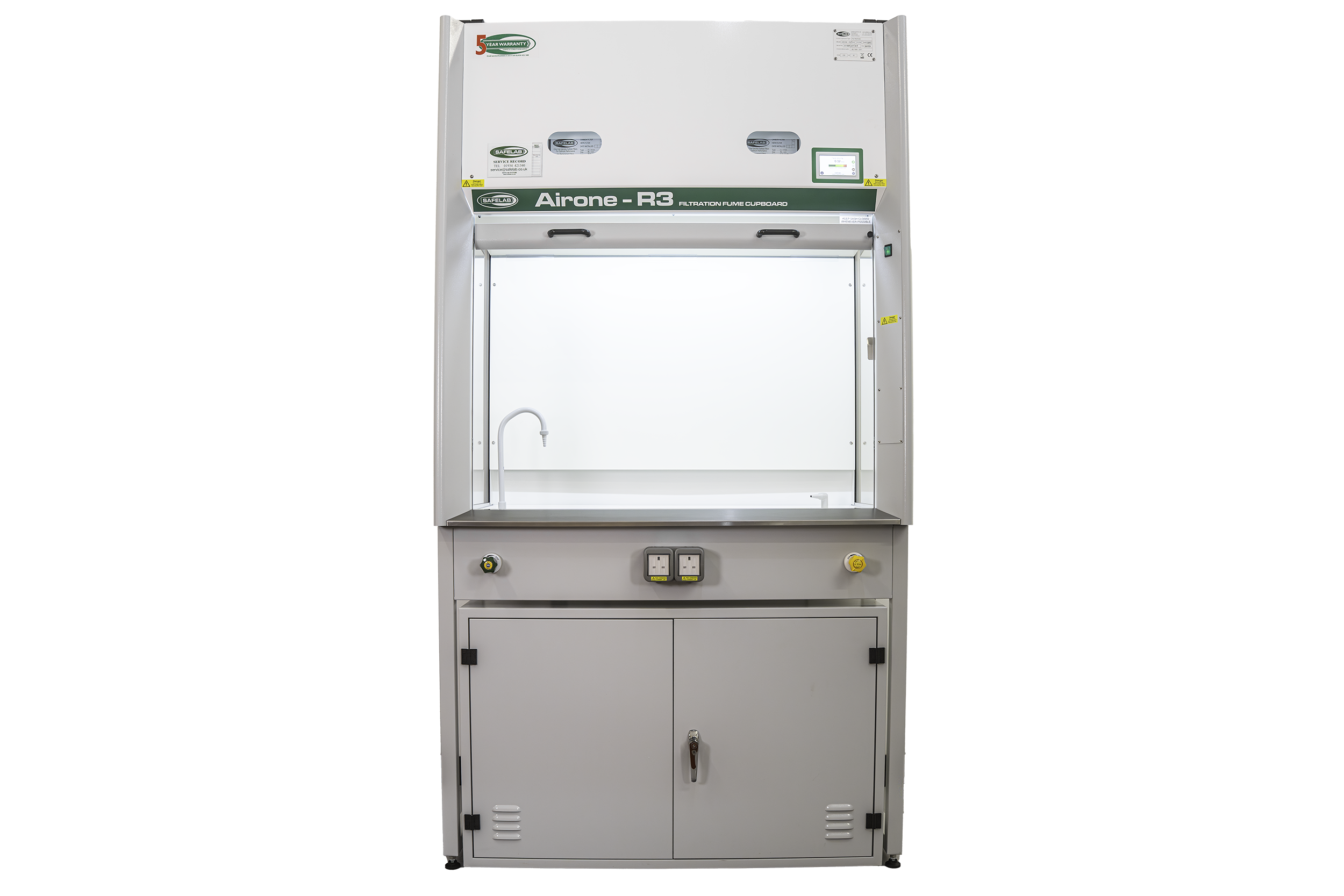

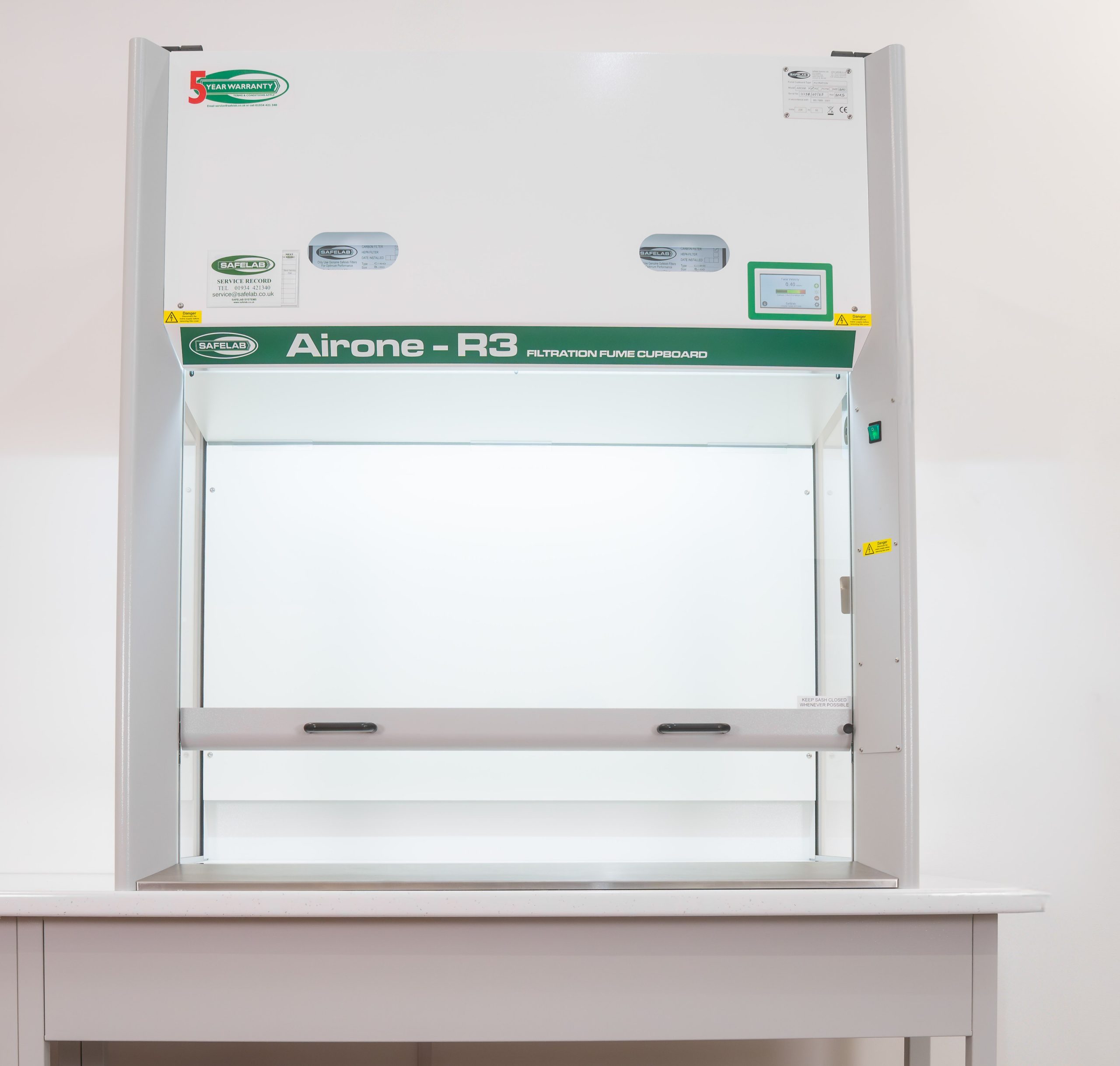

The Airone R3 is a high-specification ductless fume cabinet with laminated glass sides, incorporating replaceable activated carbon and/or HEPA filters to suit the application.
Build quality is of a high standard, with extruded aluminium aerofoils, a stainless steel sill and a counterweighted smooth-action laminated glass sash. The integrated Variable Air Volume system helps ensure the required inward airflow for operator protection remains constant at all working sash heights.
Because the Airone R3 does not require ducting or make-up air systems, installation can be more straightforward and less costly than a ducted unit. It is also energy efficient, as it does not expel heated indoor air to the outside.
The Airone R3 is available in a choice of sizes and can be bench mounted, free standing or supplied as a walk-in unit. A polypropylene option is also available for applications where an alternative construction material is required. Services and materials can be tailored to each customer’s individual needs.
Product features
- Ductless fume cabinet design — provides a practical alternative where external ductwork is difficult or costly.
- Activated carbon and/or HEPA filter technology — allows filtration to be selected to suit the application.
- No external ductwork required — can reduce installation complexity compared with a ducted system.
- Variable Air Volume system — helps maintain the required inward airflow at all working sash heights.
- Low airflow alarm — alerts users if airflow falls below the required safe operating level.
- Laminated glass side panels — provide a clear view of the workspace.
- Counterweighted laminated glass sash — gives smooth, controlled sash movement.
- Epoxy-coated mild steel construction — durable construction with RAL7035 finish.
- Bench-mounted, free-standing and walk-in options — allows the cabinet to be specified around the laboratory layout.
- Polypropylene option available — suitable where an alternative material specification is required.
- Tailored services and materials — allows the cabinet to be specified for individual laboratory needs.
- Energy-efficient operation — does not expel heated indoor air outside.
Product features
- Ductless fume cabinet design
- Activate carbon and/or HEPA filter technology
- No external ductwork required
- Variable Air Volume system
- Low airflow alarm
- Laminate glass side panels
- Counterweighted laminated glass sash
- Epoxy-coated mild steel construction
- Bench-mounted, free-standing and walk-in options
- Polypropylene option available
- Tailored services and materials
- Energy-efficient operation
Why choose the Airone R3?
Choose the Airone R3 if your laboratory needs a high-specification ductless fume cabinet and external ductwork is difficult, costly or impractical.
The R3 is particularly suitable for industrial, university and research laboratories that need flexible installation, application-specific filtration and energy-efficient operation. Because it does not require ducting or make-up air systems, it can reduce installation complexity while avoiding the expulsion of heated indoor air to the outside.
Key reasons to choose this model include:
- high-specification ductless fume cabinet design;
- no external ductwork required;
- carbon and/or HEPA filter technology;
- Variable Air Volume system for airflow control;
- low airflow alarm for safe operation;
- energy-efficient operation;
- bench-mounted, free-standing and walk-in configurations;
- polypropylene option available for relevant applications;
- designed to comply with BS EN 17242.
Airone R3 vs ducted fume cupboards
The Airone R3 is a ductless fume cabinet, while ducted fume cupboards discharge extracted air outside through an external duct system. The right option depends on the application, substances used, building constraints, airflow requirements and project specification.
Simple comparison
| Airone R3 ductless fume cabinet | Ducted fume cupboard |
|---|---|
| Uses activated carbon and/or HEPA filters | Connects to ducting and discharges air outside |
| No external ductwork required | Requires external ductwork and discharge route |
| Can reduce installation complexity | More involved installation and building works |
| Does not expel heated indoor air outside | Extracted air is discharged externally |
| Requires filter selection, monitoring and replacement | No carbon or HEPA filter replacement required |
| Useful where ducting is difficult or costly | Useful where external discharge is required or preferred |
| Available as bench-mounted, free-standing or walk-in | Available in a range of ducted configurations |
| Polypropylene option available where required | Material options depend on the ducted model specified |
Not sure whether your project needs a ductless fume cabinet, a ducted fume cupboard, a polypropylene option or a walk-in configuration? Safelab can advise on the most suitable option for your laboratory, application and building requirements.
Safety, filtration, and laboratory use
The Airone R3 is designed to comply with BS EN 17242 for filtration fume cabinets.
The cabinet incorporates replaceable activated carbon and/or HEPA filters, allowing filtration to be specified to suit the application. Its integrated Variable Air Volume system helps maintain the required inward airflow for operator protection at all working sash heights.
The fume cabinet also incorporates a low airflow alarm, helping alert users if airflow falls below the required level for safe operation.
Product options and configurations
The Airone R3 is available in a choice of sizes and can be configured to suit different laboratory layouts, applications, filtration requirements and material specifications.
Options include:
- bench-mounted fume cabinet configurations;
- free-standing fume cabinet configurations;
- walk-in fume cabinet options;
- polypropylene fume cabinet options;
- activated carbon filter configurations;
- HEPA filter configurations;
- tailored services;
- tailored materials;
- project-specific specification support from Safelab.
Product video
See the Airone R3 ductless fume cabinet and its key features, including the working area, sash, filter technology and laboratory configuration options.
The Airone R3 is a high-specification ductless fume cabinet for industrial, university and research laboratory environments. It uses activated carbon and/or HEPA filter technology and can be supplied in bench-mounted, free-standing, walk-in and polypropylene configurations.
Technical specification
Need dimensions, filter options, configuration details, materials, services or procurement information?
Download the Airone R3 technical specification for detailed product information to support planning, specification and purchasing decisions.
