Airone XP4 Double Walled Ducted Fume Cupboard

Ducted Fume Cupboards
Fume Cupboards for Industry and Higher Education

Key Points

  • Designed to comply with BS:EN 14175
  • Double walled construction
  • Air bypass system or Variable Air Volume (VAV) system
  • Easily tailored to meet your requirements
  • BREEAM compliant

General Product Information

  • Epoxy coated mild steel construction (RAL7035)
  • Aluminium extrusions
  • Digital control system
  • Counterweighted front sliding glass sash
  • Available in various widths and walk-in option

Technical Specification

Case Studies

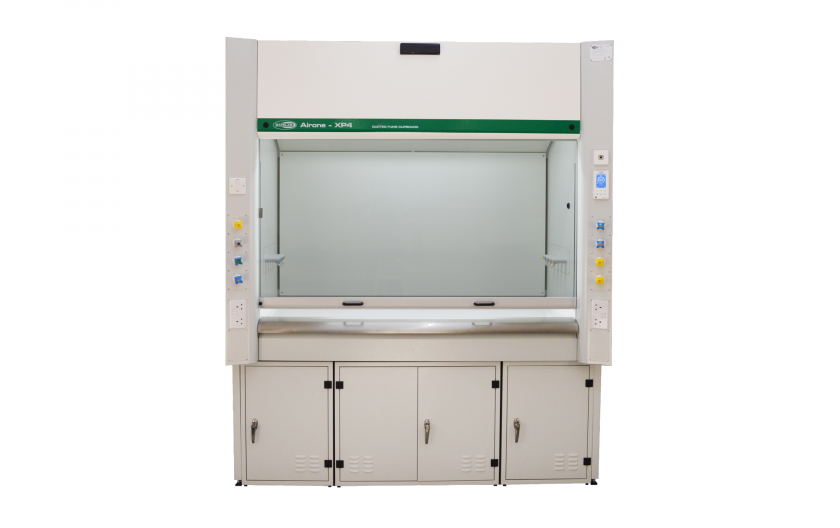

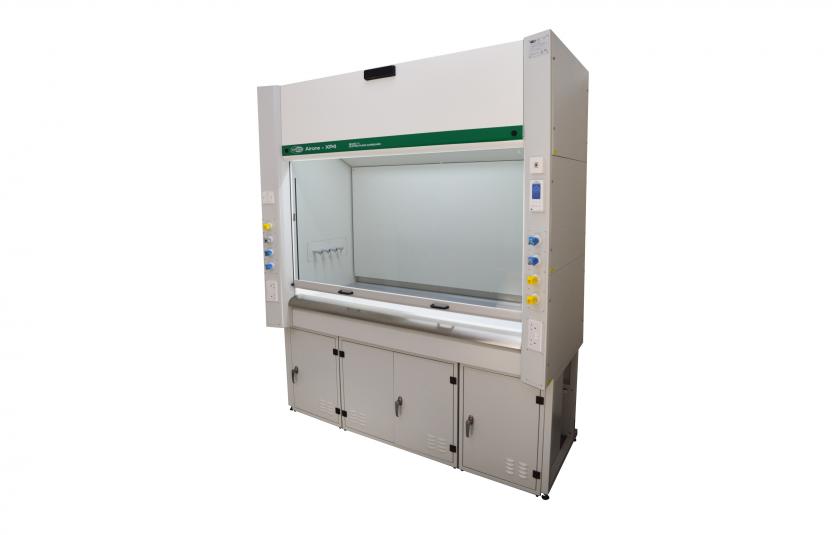

The  Airone XP4 is a high specification double walled fume cupboard; services are located on the internal walls, leaving the entire working area available for use.

Build quality is of the highest standard, with extruded aluminium aerofoils, a stainless steel sill and a counter-weighted smooth action laminated glass sash.

It is available with either a VAV (Variable Air Volume) or air bypass system

The VAV model automatically minimises the amount of indoor (conditioned) air being pulled through the fume cupboard and expelled outside as the sash is raised and lowered, whilst maintaining full operator protection. The reduction in heating or air conditioning required by the building yields substantial energy savings.

In the air bypass model a constant volume of air is pulled through the Airone XP4 under all operating conditions.

A special low flow configuration of the Airone XP4 maintains operator protection at reduced face velocities down to 0.3m/s, helping to fulfil the low energy requirements of BREEAM accredited new buildings.

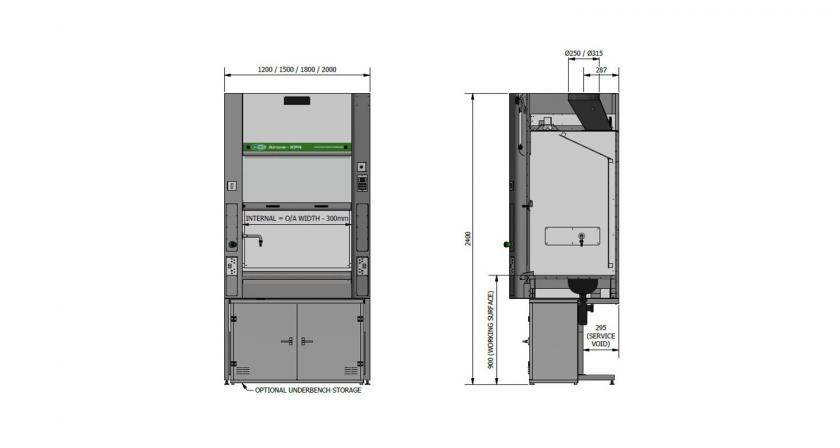

The Airone XP4 fume cupboard is available in a choice of sizes and can be bench mounted, free standing or supplied as a walk-in unit.  An extensive list of options allows services and materials to be tailored to each customer’s individual needs.

Please contact us to discuss your requirements.
